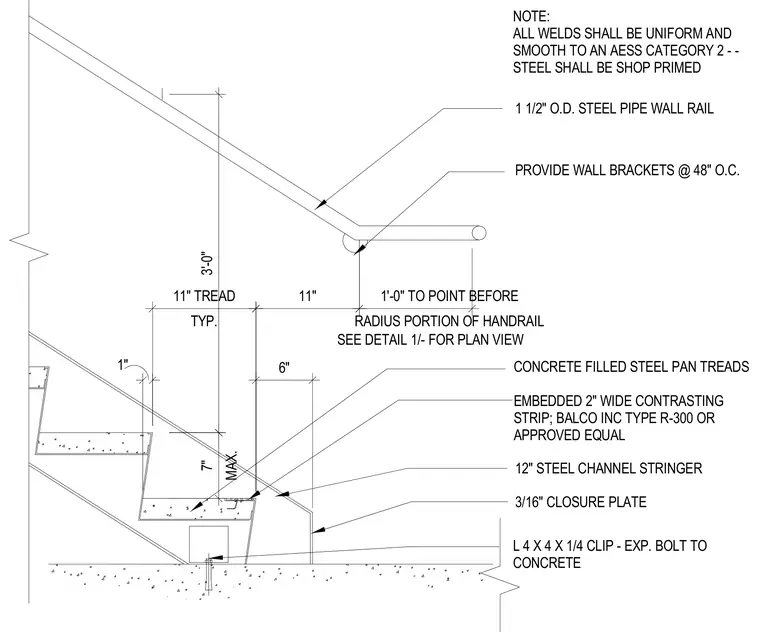

The stair assembly features concrete-filled steel pan treads supported by a twelve-inch steel channel stringer secured with an L 4 x 4 x 1/4 angle clip and expansion bolts anchored into the concrete slab. An embedded two-inch wide contrasting strip by Balco Inc type R-300 or approved equal is installed at the tread nosing. A one-and-a-half-inch outside diameter steel pipe wall rail is mounted with wall brackets spaced at forty-eight inches on center, terminating with a three-sixteenth-inch closure plate. All structural steel is shop primed and welds are uniform and smooth to meet Architecturally Exposed Structural Steel category two standards.
3'-0" 11" 1'-0" TO POINT BEFORE RADIUS PORTION OF HANDRAIL 11" TREAD TYP. 1" 6" 7" MAX. 1 1/2" O.D. STEEL PIPE WALL RAIL 3/16" CLOSURE PLATE 12" STEEL CHANNEL STRINGER CONCRETE FILLED STEEL PAN TREADS PROVIDE WALL BRACKETS @ 48" O.C. NOTE: ALL WELDS SHALL BE UNIFORM AND SMOOTH TO AN AESS CATEGORY 2 - - STEEL SHALL BE SHOP PRIMED L 4 X 4 X 1/4 CLIP - EXP. BOLT TO CONCRETE EMBEDDED 2" WIDE CONTRASTING STRIP; BALCO INC TYPE R-300 OR APPROVED EQUAL SEE DETAIL 1/- FOR PLAN VIEW
