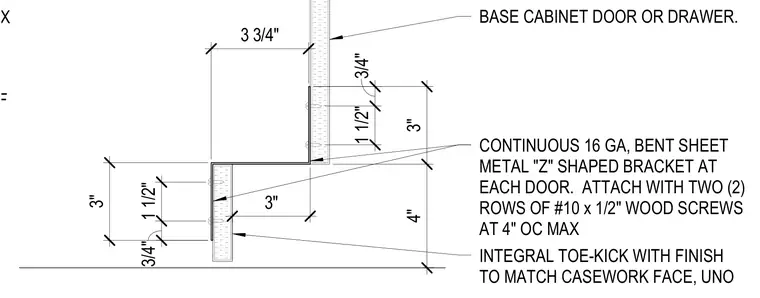

This interior millwork detail shows a four-inch integral recessed toe kick for base cabinet doors or drawers. A continuous sixteen-gauge bent sheet metal Z-shaped bracket is attached to each door with two rows of number ten by one-half-inch wood screws spaced at four inches on center maximum. Two-by-four wood blocking is installed at ends and forty-eight inches on center maximum, centered on each piece of the integral toe-kick. The toe-kick features a finish to match the casework face.
2x4 BLOCKING AT ENDS AND 48" OC MAX @16"OC, CENTERED ON EACH PIECE OF INTEGRAL TOE-KICK WITH FINISH TO MATCH CASEWORK FACE, UNO BASE CABINET DOOR OR DRAWER. 3" 4" 3" 1 1/2" 3/4" 3" 3/4" 1 1/2" CONTINUOUS 16 GA, BENT SHEET METAL "Z" SHAPED BRACKET AT EACH DOOR. ATTACH WITH TWO (2) ROWS OF #10 x 1/2" WOOD SCREWS AT 4" OC MAX 3 3/4"
