Architectural · A-F6NFR

Tile Termination at Slab

Materials

Steel Cold-formed Steel Stainless Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Walls Floors / Slabs Waterproofing / Flashing Anchors / Embeds Connections / Plates Reinforcing

Connections

Rebar Splice / Development

About this detail

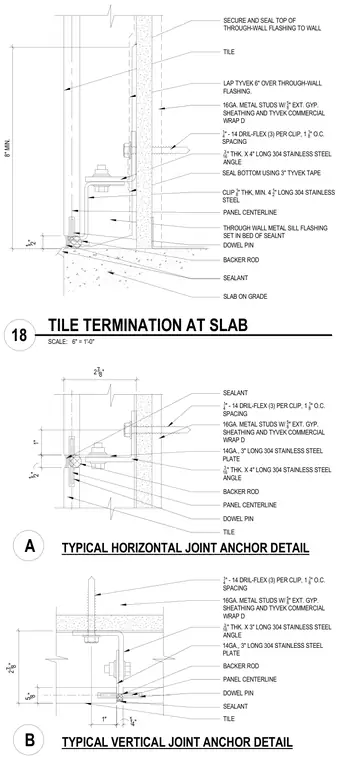

This assembly details a tile-clad wall termination at a concrete slab on grade, incorporating horizontal and vertical joint anchor details. The exterior wall framing consists of sixteen-gauge metal studs with five-eighths-inch exterior gypsum sheathing and Tyvek commercial wrap. Stainless steel clips and angles—including three-sixteenths-inch thick by four-inch long three-hundred-four stainless steel angles and fourteen-gauge three-inch long plates—secure the panel system using quarter-inch by fourteen Dril-Flex fasteners at one and one-eighth-inch on-center spacing. A through-wall metal sill flashing is set in a bed of sealant at the slab interface, with the Tyvek wrap lapped six inches over the flashing and sealed at the bottom using three-inch Tyvek tape. Joints feature dowel pins, backer rods, and sealant along the panel centerlines.
