Perforated metal panels attach over cold-formed metal framing supported by structural hollow structural section steel members. A prefinished sheet metal flashing caps the assembly at the top of the screen, secured with flashing support clips. Steel member sizing and dimensions are referenced from the structural drawings.

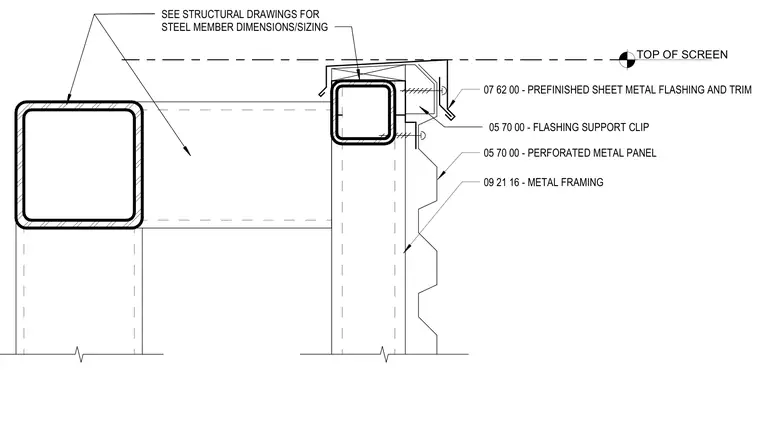

07 62 00 - PREFINISHED SHEET METAL FLASHING AND TRIM 05 70 00 - PERFORATED METAL PANEL 09 21 16 - METAL FRAMING SEE STRUCTURAL DRAWINGS FOR STEEL MEMBER DIMENSIONS/SIZING TOP OF SCREEN 05 70 00 - FLASHING SUPPORT CLIP
