The cable features an overall diameter of zero point thirty-one inches with an orange or blue intrinsically safe outer jacket. Internal components include a foil shield, a braid shield, a drain wire, and brown and blue insulated conductors.

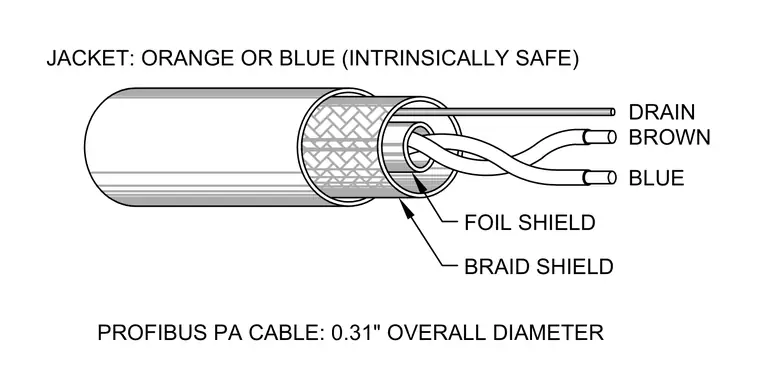

JACKET: ORANGE OR BLUE (INTRINSICALLY SAFE) PROFIBUS PA CABLE: 0.31" OVERALL DIAMETER BROWN BLUE FOIL SHIELD BRAID SHIELD DRAIN
