A pipe penetrates the roof assembly through a pre-molded pipe flashing boot. The base flange of the flashing attaches to the roof deck with fasteners and plates spaced at a maximum of 12 inches on center. A hot air weld applied to the membrane extends a minimum of 1 1/2 inches beyond the fastening plates to ensure a watertight seal. Water cut-off mastic seals the top of the flashing boot against the pipe, secured by a stainless steel clamping ring. Fall protection systems must utilize the pre-molded pipe flashing in accordance with the manufacturer's warranty.
Text on the drawing

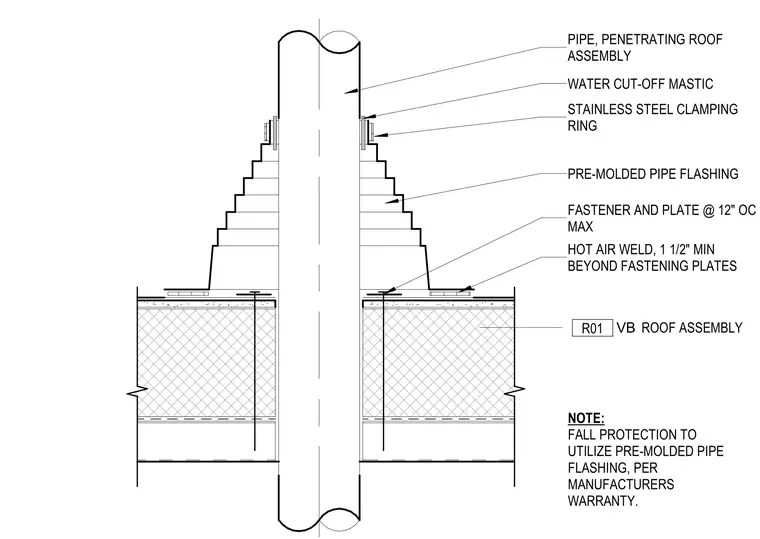

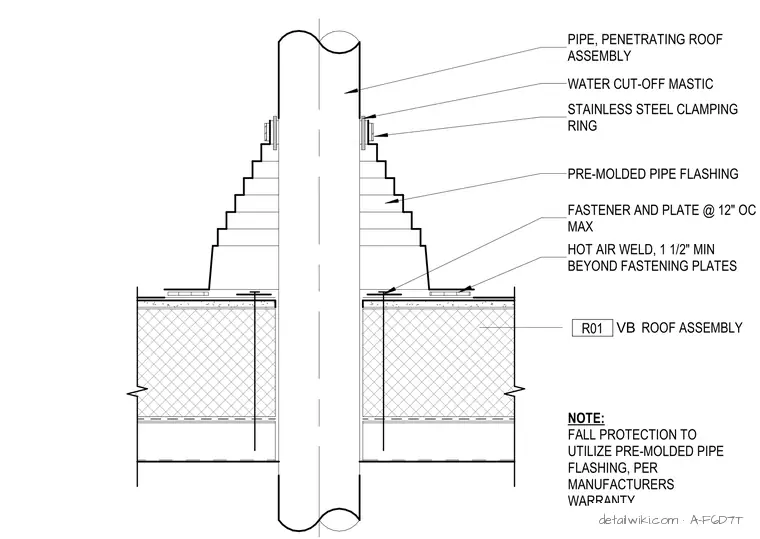

HOT AIR WELD, 1 1/2" MIN BEYOND FASTENING PLATES WATER CUT-OFF MASTIC FASTENER AND PLATE @ 12" OC MAX PRE-MOLDED PIPE FLASHING STAINLESS STEEL CLAMPING RING PIPE, PENETRATING ROOF ASSEMBLY NOTE: FALL PROTECTION TO UTILIZE PRE-MOLDED PIPE FLASHING, PER MANUFACTURERS WARRANTY. VB ROOF ASSEMBLY R01 A-60000 | 3" = 1'-0" WALL PENETRATION @ PIPE 13
