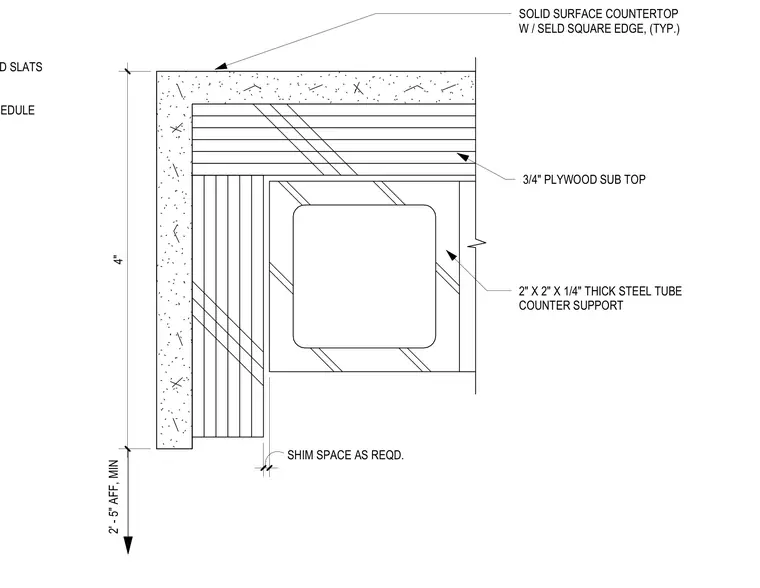

A solid surface countertop with a square edge sits over a three-quarter-inch plywood sub-top. The assembly is supported by a two-by-two-by-one-quarter-inch thick steel tube counter support. The adjacent interior wall features one-and-one-half-inch thick treated wood slats with shim space as required, positioned at a minimum of two feet five inches above finished floor.
4" 4" 2' - 5" AFF, MIN SOLID SURFACE COUNTERTOP W / SELD SQUARE EDGE, (TYP.) 3/4" PLYWOOD SUB TOP 2" X 2" X 1/4" THICK STEEL TUBE COUNTER SUPPORT SHIM SPACE AS REQD. 0" 1 1/2" THK TREATED WOOD SLATS INTERIOR WALL, SEE SCHEDULE
