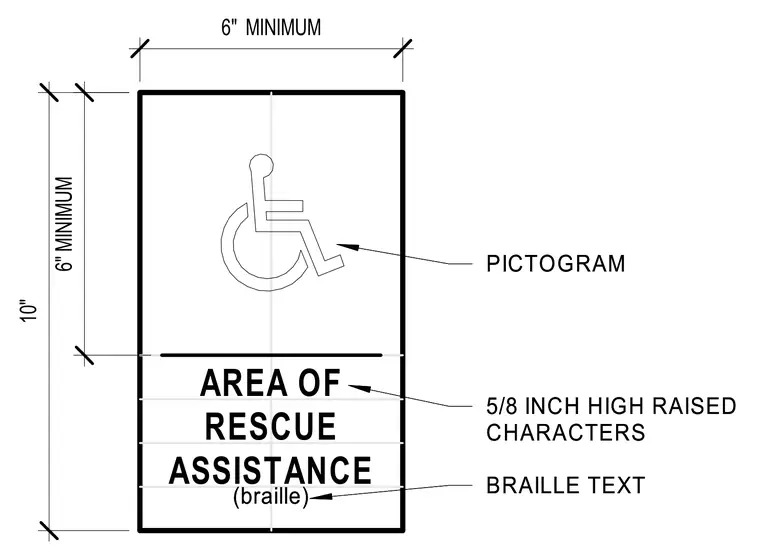

Area of rescue assistance signage featuring a six inch minimum width and a ten inch height. The sign incorporates a wheelchair pictogram above raised characters that are five-eighths of an inch high with corresponding braille text below. The layout specifies minimum clearances and text arrangements for accessibility compliance.
6" MINIMUM 10" (braille) AREA OF RESCUE ASSISTANCE BRAILLE TEXT 5/8 INCH HIGH RAISED CHARACTERS PICTOGRAM 6" MINIMUM (braille) BRAILLE TEXT 5/8 INCH HIGH RAISED CHARACTERS PICTOGRAM
