Architectural Precast Wall and Integrated Wood Bench Detail

Materials

Elements

Walls Facades / Cladding Stairs Floors / Slabs

About this detail

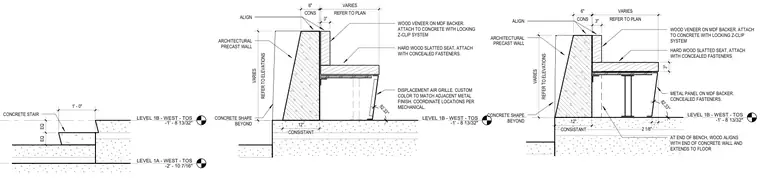

This assembly features an architectural precast concrete wall with a sloped profile paired with a built-in wood bench structure. The bench incorporates a three-inch thick hard wood slatted seat and wood veneer on medium-density fiberboard backer, attached to the concrete backing using a locking Z-clip system with concealed fasteners. A displacement air grille with a custom color to match adjacent metal finishes is integrated beneath the seating, coordinated with mechanical requirements. Additional configurations show a metal panel on medium-density fiberboard backer extending to the floor at the end of the bench, aligning with the end of the concrete wall.
