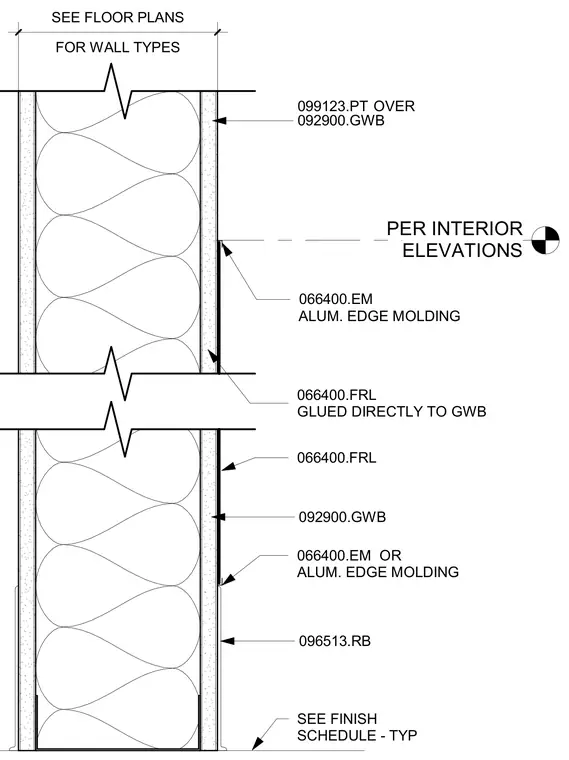

An interior partition wall assembly consists of gypsum wallboard mounted on framing with internal batt insulation, finished with paint or specialized wall panels. Fiber reinforced plastic panels are glued directly to the gypsum wallboard surface. Aluminum edge molding trims the transition points of the panel finishes per interior elevations. A resilient base is installed at the wall base over the lower gypsum wallboard finish.
SEE FINISH SCHEDULE - TYP OVER 092900.GWB 092900.GWB 066400.FRL GLUED DIRECTLY TO GWB FOR WALL TYPES SEE FLOOR PLANS 066400.FRL 096513.RB 066400.EM 099123.PT ALUM. EDGE MOLDING PER INTERIOR ELEVATIONS OR ALUM. EDGE MOLDING 066400.EM
