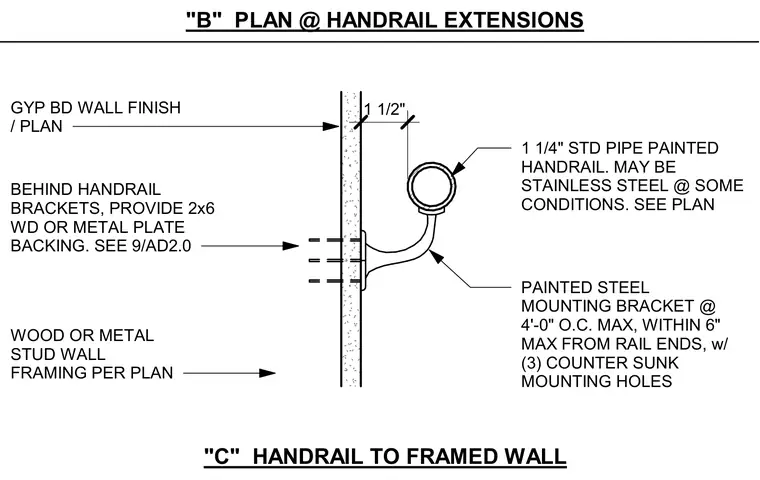

A 1-1/4 inch standard pipe painted handrail is secured to a wall using a 1-1/2 inch painted steel mounting bracket with three countersunk mounting holes. The bracket is spaced at a maximum of 4 feet on center and within 6 inches of the rail ends. Behind the handrail brackets, a 2x6 wood or metal plate backing is provided within the wood or metal stud wall framing. Gypsum board finish is applied to the wall face.
"B" PLAN @ HANDRAIL EXTENSIONS "C" HANDRAIL TO FRAMED WALL 1 1/2" PAINTED STEEL MOUNTING BRACKET @ 4'-0" O.C. MAX, WITHIN 6" MAX FROM RAIL ENDS, w/ (3) COUNTER SUNK MOUNTING HOLES GYP BD WALL FINISH / PLAN BEHIND HANDRAIL BRACKETS, PROVIDE 2x6 WD OR METAL PLATE BACKING. SEE 9/AD2.0 WOOD OR METAL STUD WALL FRAMING PER PLAN 1 1/4" STD PIPE PAINTED HANDRAIL. MAY BE STAINLESS STEEL @ SOME CONDITIONS. SEE PLAN
