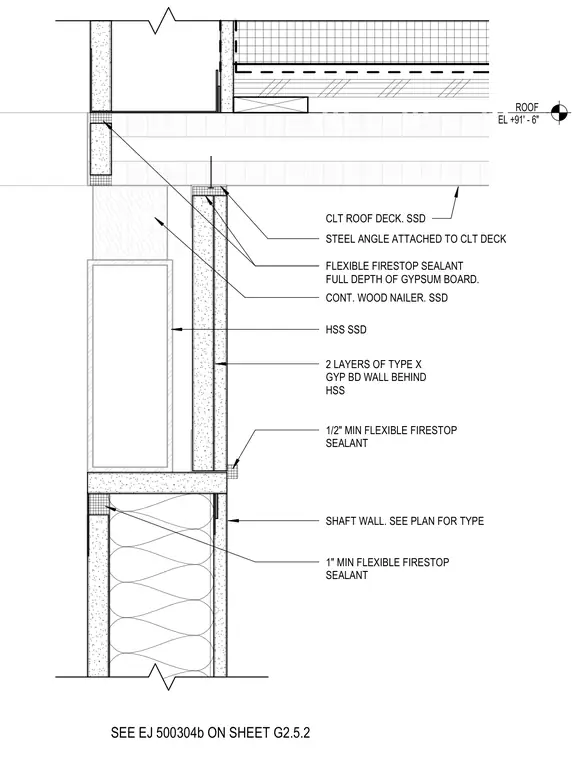

The assembly is framed by a cross-laminated timber roof deck supported beneath by a steel angle attached to a continuous wood nailer. A hollow structural section supports the elevator shaft wall, which is constructed with two layers of Type X gypsum board installed behind the structural steel. Flexible firestop sealant fills the joint spaces fully across the gypsum board depth and along the perimeter. A one-inch minimum flexible firestop sealant is detailed at the shaft wall intersection, supplemented by a half-inch minimum joint seal tied to expansion joint specifications.
ROOF EL +91' - 6" CLT ROOF DECK. SSD HSS SSD SHAFT WALL. SEE PLAN FOR TYPE 2 LAYERS OF TYPE X GYP BD WALL BEHIND HSS FLEXIBLE FIRESTOP SEALANT FULL DEPTH OF GYPSUM BOARD. 1/2" MIN FLEXIBLE FIRESTOP SEALANT SEE EJ 500304b ON SHEET G2.5.2 1" MIN FLEXIBLE FIRESTOP SEALANT CONT. WOOD NAILER. SSD STEEL ANGLE ATTACHED TO CLT DECK
