Rated Partition Intersection at Curtain Wall Vertical Mullion

Materials

Elements

Walls Partitions Floors / Slabs Insulation

About this detail

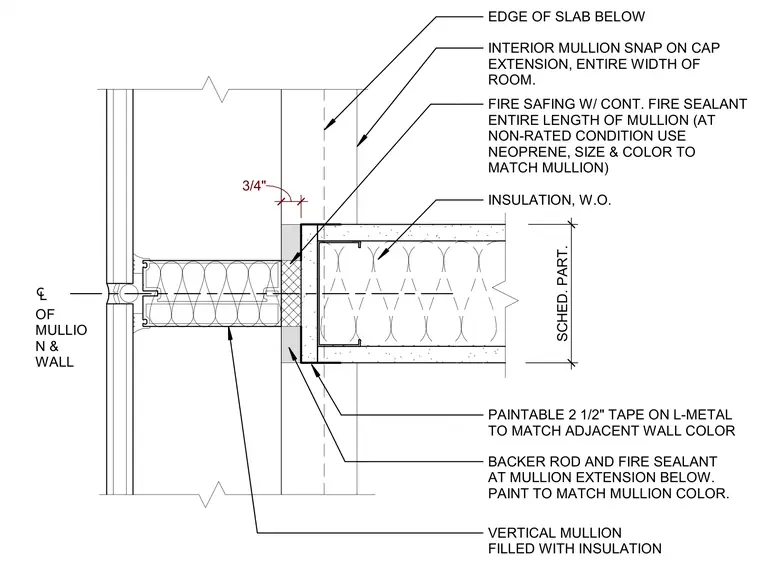

A scheduled partition wall terminates at a vertical curtain wall mullion with insulation filling the cavity. The vertical mullion is centered on the partition and wall line, featuring an interior mullion snap-on cap extension across the entire room width. Fire safing with continuous fire sealant runs the entire length of the mullion below the edge of the slab, with neoprene substituted at non-rated conditions. Backer rod and fire sealant seal the mullion extension below, finished with paint to match the mullion color. L-metal with paintable two-and-a-half-inch tape matches the adjacent wall color.
