Architectural · A-F5C8X

Concrete Bevel Detail at Storefront Opening

Materials

Concrete

Elements

Storefronts Roof / Floor Openings

About this detail

A concrete bevel is formed around all architectural openings housing a storefront system.

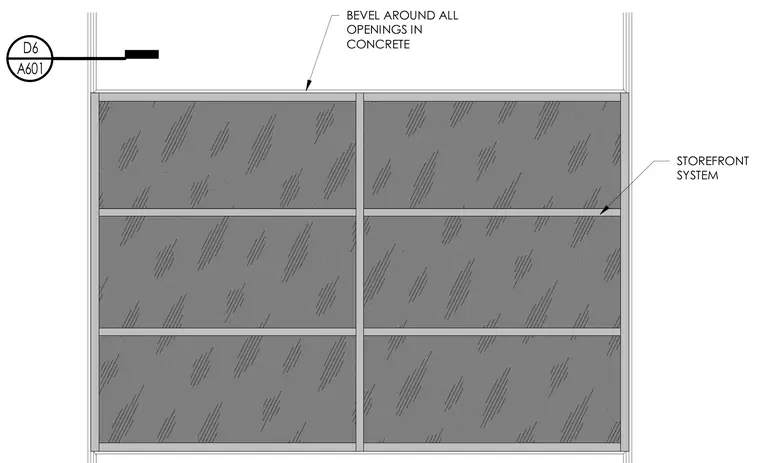

BEVEL AROUND ALL OPENINGS IN CONCRETE STOREFRONT SYSTEM D6 A601

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
