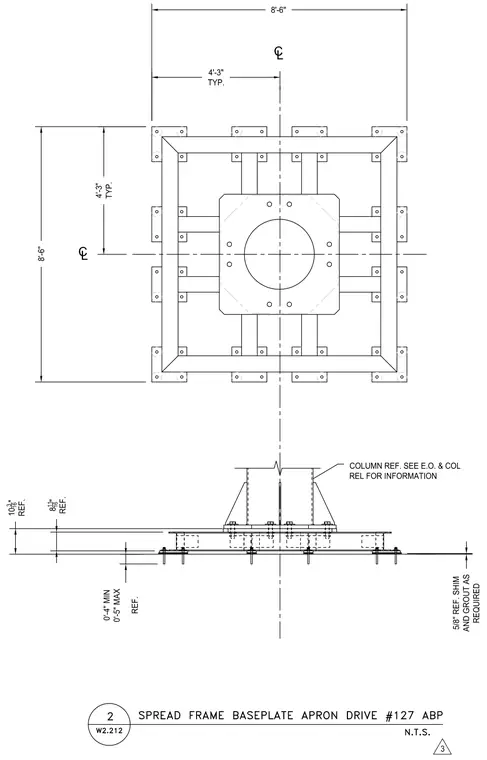

A spread frame baseplate assembly for an apron drive includes a steel structural frame and baseplate anchored with anchor bolts. Shims and grout are placed as required beneath the frame assembly with specified dimensional clearances. The column references structural drawings for additional information.
10 3 16 " REF. 8 11 16 " REF. 4'-3" TYP. LC 8'-6" 4'-3" TYP. 8'-6" LC COLUMN REF. SEE E.O. & COL REL FOR INFORMATION 0'-4" MIN 0'-5" MAX REF. 5/8" REF. SHIM AND GROUT AS REQUIRED 3
