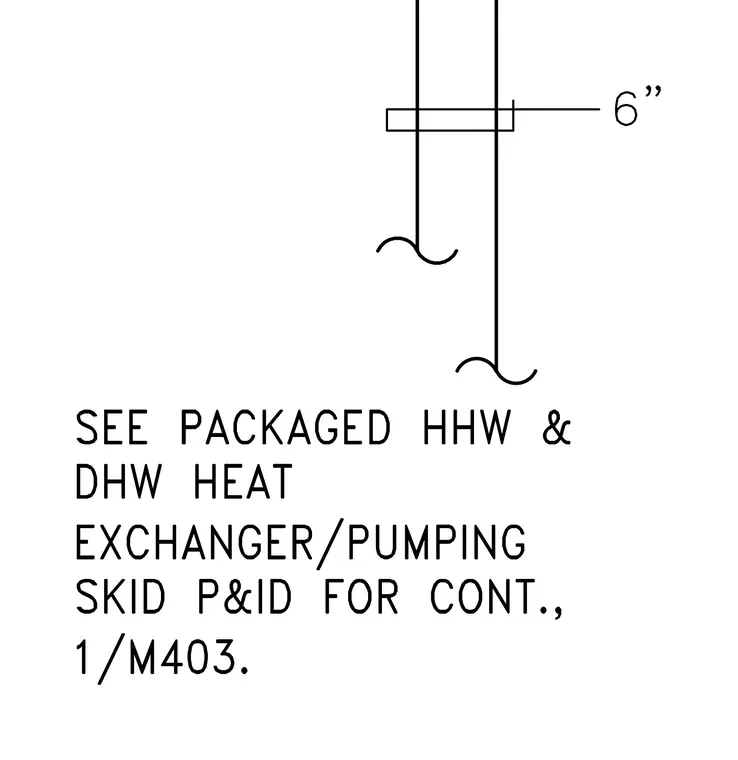

This detail indicates a piping connection referenced to the packaged heating hot water and domestic hot water heat exchanger pumping skid piping and instrumentation diagram on sheet 1/M403. A six-inch dimension is noted adjacent to the pipe run.
