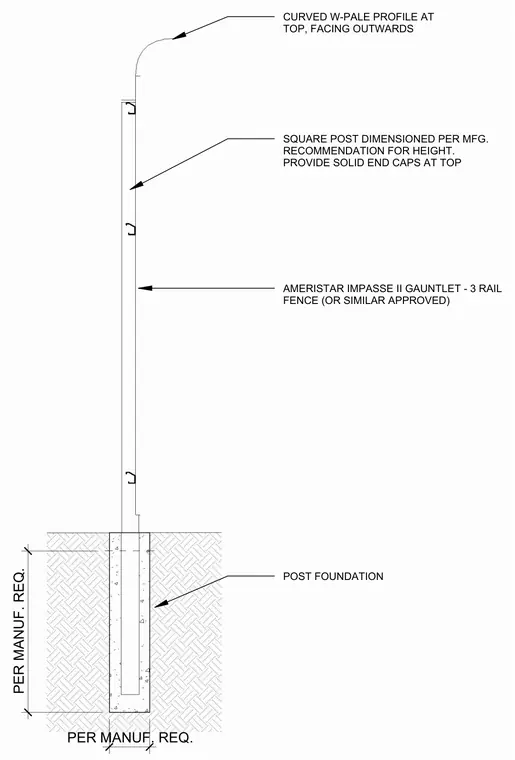

An Ameristar Impasse II Gauntlet 3-rail security fence or similar approved product mounts to a square steel post sized per manufacturer recommendations for the required height. Solid end caps close the top of the post, and a curved W-pale profile faces outwards at the top of the assembly. The post embeds into a concrete post foundation dimensioned per manufacturer requirements.
SQUARE POST DIMENSIONED PER MFG. RECOMMENDATION FOR HEIGHT. PROVIDE SOLID END CAPS AT TOP AMERISTAR IMPASSE II GAUNTLET - 3 RAIL FENCE (OR SIMILAR APPROVED) POST FOUNDATION PER MANUF. REQ. PER MANUF. REQ. CURVED W-PALE PROFILE AT TOP, FACING OUTWARDS
