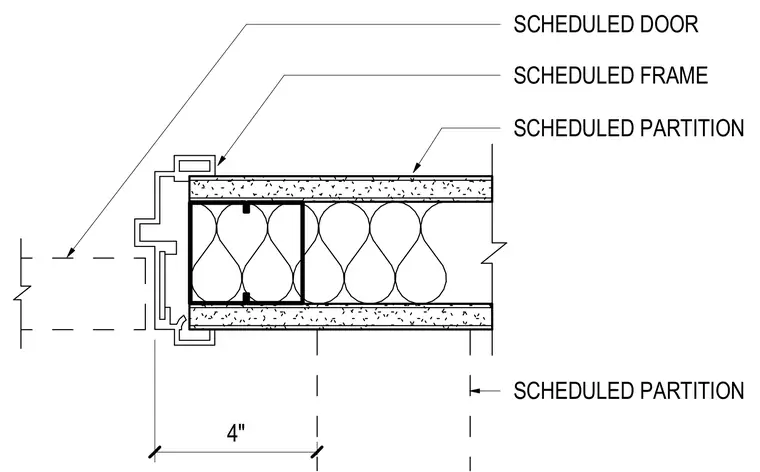

A scheduled door leaf seats within a scheduled door frame tied to the end of a scheduled partition wall. The four-inch dimension notes the frame profile or rough opening clearance. The partition consists of steel studs with thermal insulation and gypsum board layers on both faces.
