Stainless Steel Guardrail Base Plate and Toeboard Detail

Materials

Steel

Elements

Columns Decks Connections / Plates

Connections

Welded Connection Bolted Connection Deck Attachment

About this detail

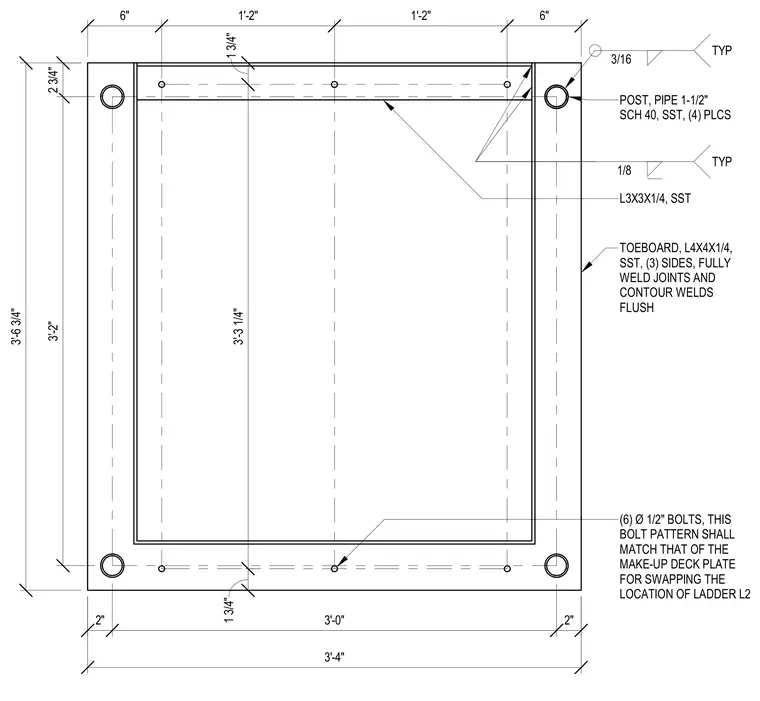

The assembly consists of four 1-1/2-inch Schedule 40 stainless steel pipe posts welded to a base plate with 3/16-inch fillet welds. An L4x4x1/4 stainless steel toeboard runs along three sides, featuring fully welded joints and contour welds ground flush. An inner L3x3x1/4 stainless steel angle frame is secured with 1/8-inch fillet welds. Six 1/2-inch diameter bolts fasten the base, utilizing a pattern that matches the make-up deck plate to allow swapping the location of ladder L2.
