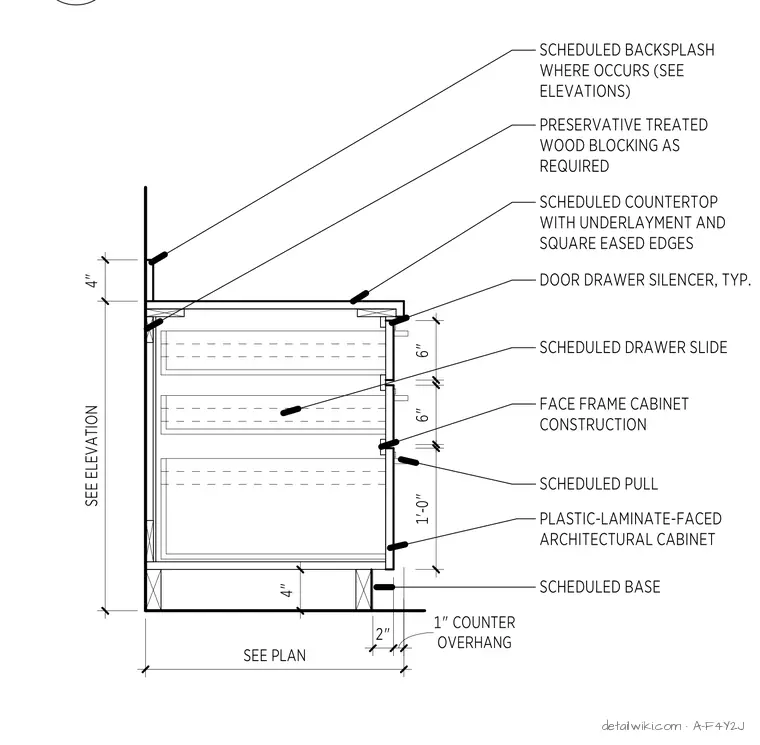

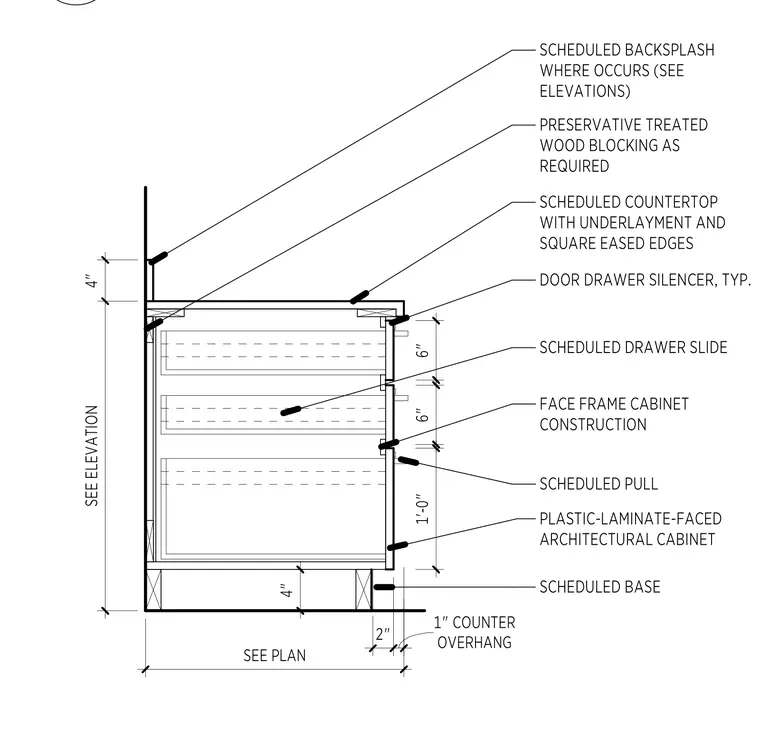

Plastic-laminate-faced architectural base cabinet with face frame construction. Assembly includes scheduled countertop with underlayment and square eased edges, supported by preservative-treated wood blocking as required. Cabinet interior contains drawers with scheduled slides and typical door drawer silencers. Front face includes scheduled pulls, with a one-inch countertop overhang and a four-inch base. Scheduled backsplash provided where indicated on elevations.
