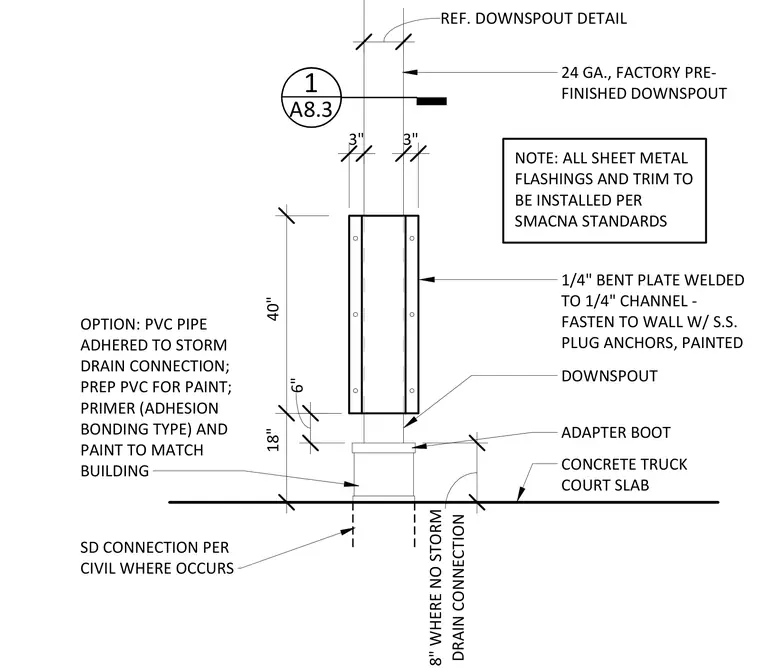

A protective downspout guard assembly mounts over a factory pre-finished 24-gauge downspout. The guard consists of a quarter-inch bent plate welded to a quarter-inch steel channel, secured to the wall using stainless steel plug anchors and painted. The downspout terminates at an adapter boot connecting to a concrete truck court slab with an optional PVC pipe option adhered to the storm drain connection. All sheet metal flashings and trim are installed in accordance with SMACNA standards.
1/4" BENT PLATE WELDED TO 1/4" CHANNEL - FASTEN TO WALL W/ S.S. PLUG ANCHORS, PAINTED 24 GA., FACTORY PRE- FINISHED DOWNSPOUT 18" 40" REF. DOWNSPOUT DETAIL CONCRETE TRUCK COURT SLAB 3" 3" NOTE: ALL SHEET METAL FLASHINGS AND TRIM TO BE INSTALLED PER SMACNA STANDARDS SD CONNECTION PER CIVIL WHERE OCCURS ADAPTER BOOT DOWNSPOUT 6" OPTION: PVC PIPE ADHERED TO STORM DRAIN CONNECTION; PREP PVC FOR PAINT; PRIMER (ADHESION BONDING TYPE) AND PAINT TO MATCH BUILDING 1 A8.3 ______ DRAIN CONNECTION 8" WHERE NO STORM
