Architectural · A-F4NEZ

Column Cover Top at Suspended Ceiling

Materials

Elements

About this detail

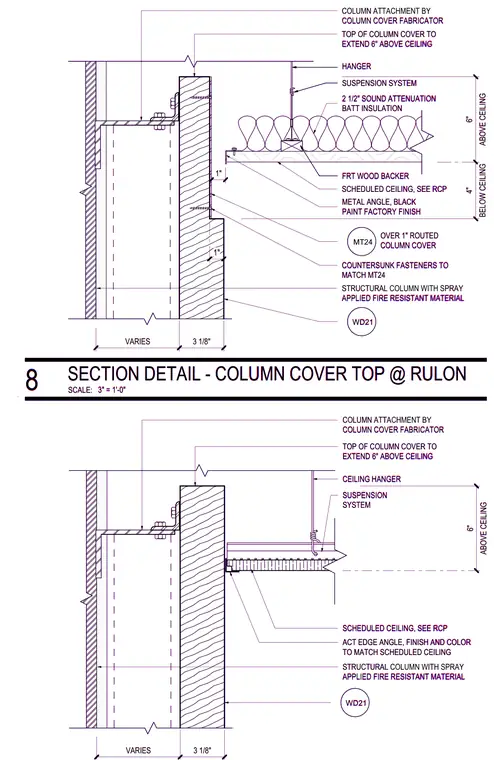

This interior architectural detail shows the top termination of a column cover assembly wrapping a structural column with spray-applied fire-resistant material. The routed wood column cover extends six inches above the scheduled ceiling line and connects via fabricator-provided attachments to a black painted metal angle and fire-retardant treated wood backer. Countersunk fasteners secure the metal and wood components in coordination with the ceiling suspension system and sound attenuation batt insulation above. The assembly interfaces with an acoustical ceiling tile edge angle or scheduled linear wood ceiling system per the reflected ceiling plan.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
