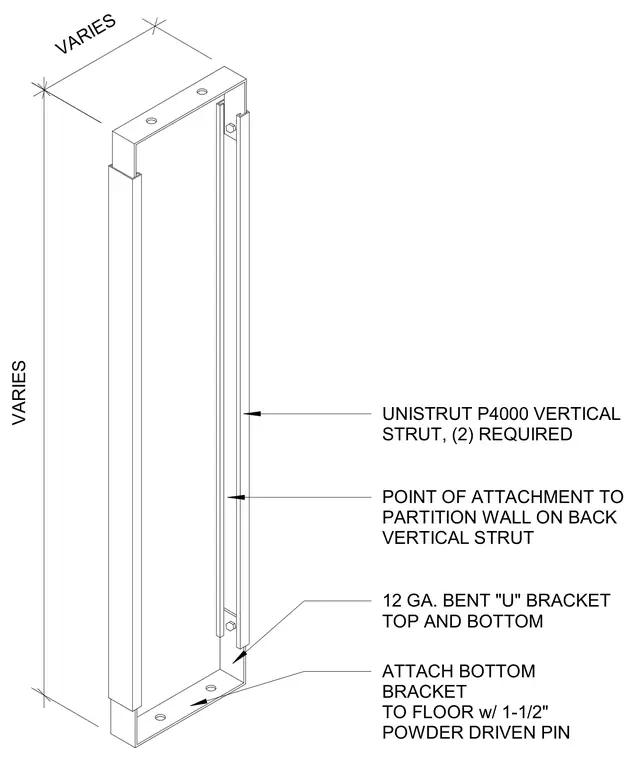

Two vertical Unistrut P4000 struts span between the floor and structure with variable height. Twelve gauge bent U-brackets secure the top and bottom of the strut assembly. The bottom bracket fastens to the floor using a one-and-a-half-inch powder-driven pin. The back vertical strut provides the point of attachment to the partition wall.
VARIES VARIES 12 GA. BENT "U" BRACKET TOP AND BOTTOM UNISTRUT P4000 VERTICAL STRUT, (2) REQUIRED POINT OF ATTACHMENT TO PARTITION WALL ON BACK VERTICAL STRUT ATTACH BOTTOM BRACKET TO FLOOR w/ 1-1/2" POWDER DRIVEN PIN
