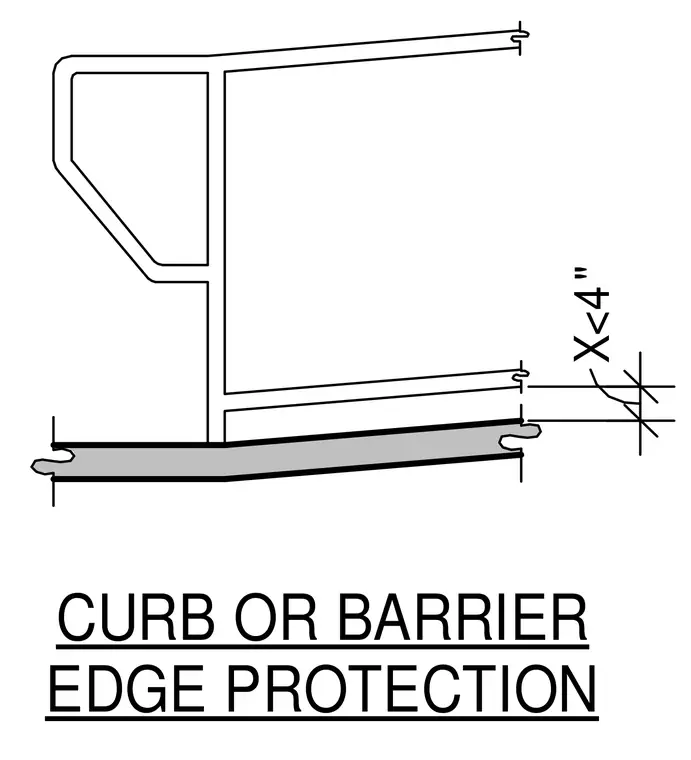

A raised guard rail or protective barrier is positioned above a continuous slab or curb surface in a curb or barrier edge protection assembly. A dimensional clearance limit of less than four inches is maintained beneath the lower rail to prevent objects from slipping past the edge.
