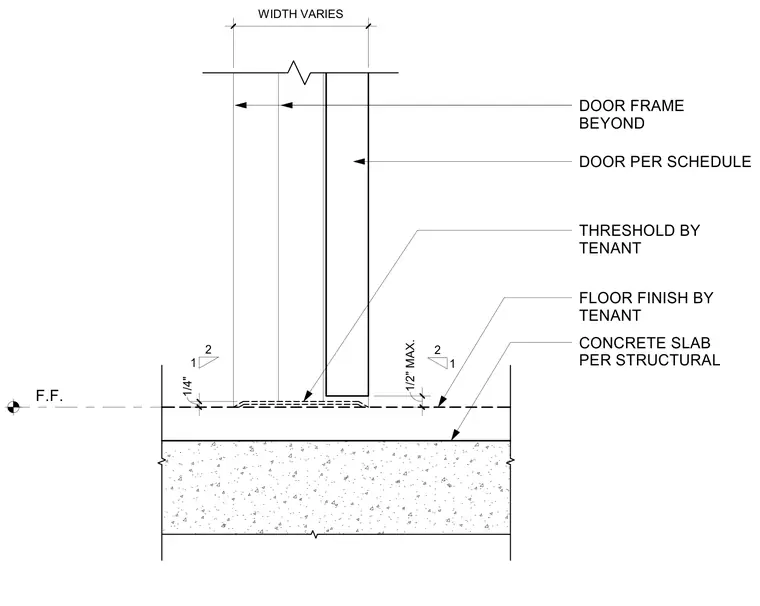

A door threshold sits above a concrete floor slab sized per structural requirements with a floor finish and threshold provided by the tenant. The finished floor datum marks the transition, with vertical clearances dimensioned up to one half-inch maximum and one-quarter-inch. A door frame extends beyond with a variable width opening for a door scheduled separately.
WIDTH VARIES DOOR FRAME BEYOND DOOR PER SCHEDULE THRESHOLD BY TENANT FLOOR FINISH BY TENANT CONCRETE SLAB PER STRUCTURAL 1/2" MAX. 1/4" F.F. 2 1 2 1
