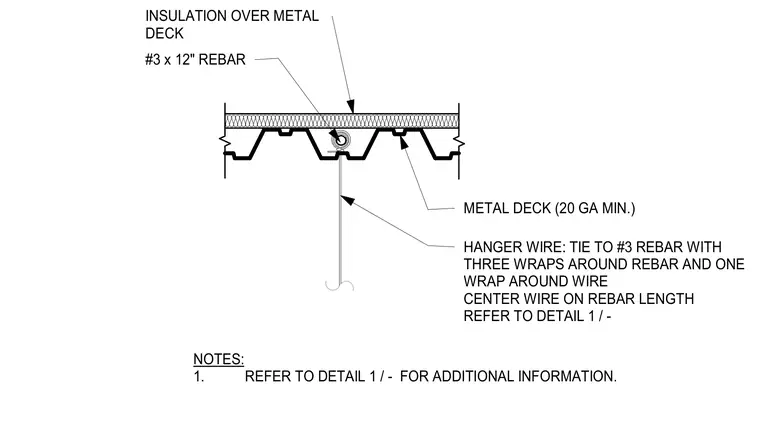

A hanger wire is secured to a number three by twelve-inch rebar centered along the length of the bar within the fluted valley of a twenty-gauge minimum metal deck with insulation above. The wire is tied to the rebar with three wraps around the rebar and one wrap around the wire. Additional information is referenced per detail one.
NOTES: 1. REFER TO DETAIL 1 / - FOR ADDITIONAL INFORMATION. METAL DECK (20 GA MIN.) INSULATION OVER METAL DECK #3 x 12" REBAR HANGER WIRE: TIE TO #3 REBAR WITH THREE WRAPS AROUND REBAR AND ONE WRAP AROUND WIRE CENTER WIRE ON REBAR LENGTH REFER TO DETAIL 1 / -
