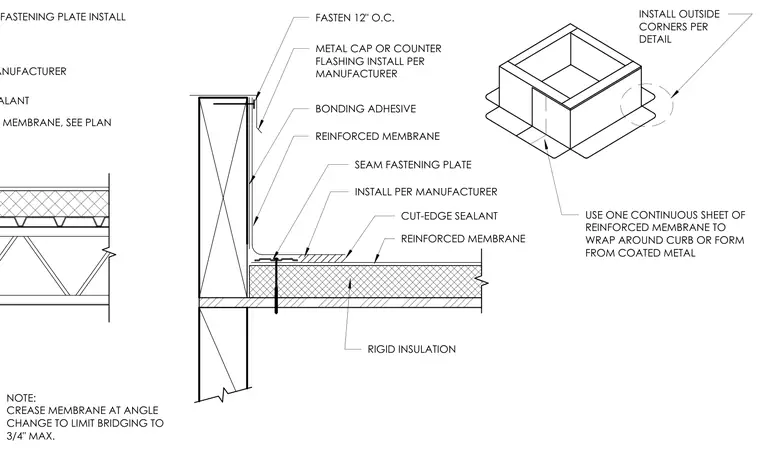

A roof curb flashing assembly utilizes a continuous sheet of reinforced membrane wrapped around the curb and secured with bonding adhesive. Rigid insulation is laid beneath the membrane layer, anchored using seam fastening plates spaced twelve inches on center. A metal cap or counter flashing is installed at the top of the curb per manufacturer specifications. Cut-edge sealant is applied along membrane edges, and the membrane is creased at angle changes to limit bridging to a maximum of three-quarters of an inch. Outside corners are constructed per specific manufacturer details.
INSTALL OUTSIDE CORNERS PER DETAIL RIGID INSULATION REINFORCED MEMBRANE CUT-EDGE SEALANT INSTALL PER MANUFACTURER SEAM FASTENING PLATE REINFORCED MEMBRANE BONDING ADHESIVE METAL CAP OR COUNTER FLASHING INSTALL PER MANUFACTURER FASTEN 12" O.C. USE ONE CONTINUOUS SHEET OF REINFORCED MEMBRANE TO WRAP AROUND CURB OR FORM FROM COATED METAL NOTE: CREASE MEMBRANE AT ANGLE CHANGE TO LIMIT BRIDGING TO 3/4" MAX. FASTENER AND FASTENING PLATE INSTALL INSTALL PER MANUFACTURER CUT EDGE SEALANT REINFORCED MEMBRANE, SEE PLAN
