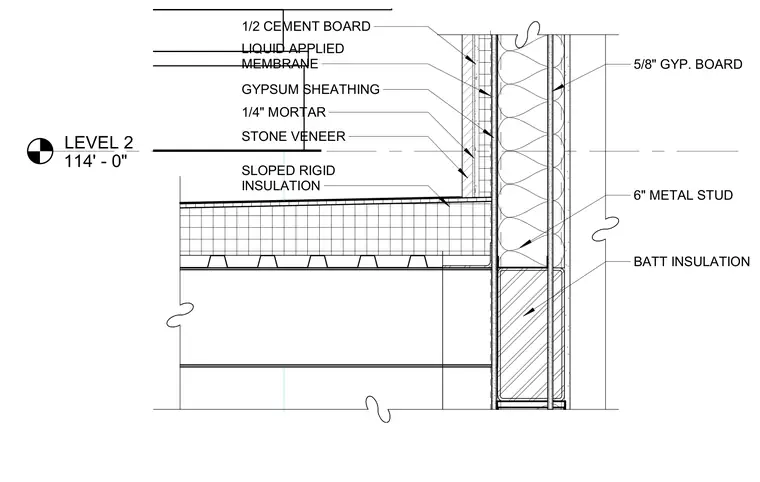

The exterior assembly consists of a stone veneer over a quarter-inch mortar bed, half-inch cement board, and a liquid-applied membrane over gypsum sheathing. The backup wall is constructed from six-inch metal studs filled with batt insulation and finished on the interior with five-eighths-inch gypsum board. At the roof intersection, sloped rigid insulation bears over the roof deck, meeting the exterior wall above the level two elevation of 114 feet zero inches.
LEVEL 2 114' - 0" 5/8" GYP. BOARD 6" METAL STUD BATT INSULATION GYPSUM SHEATHING STONE VENEER LIQUID APPLIED MEMBRANE SLOPED RIGID INSULATION 1/4" MORTAR 1/2 CEMENT BOARD
