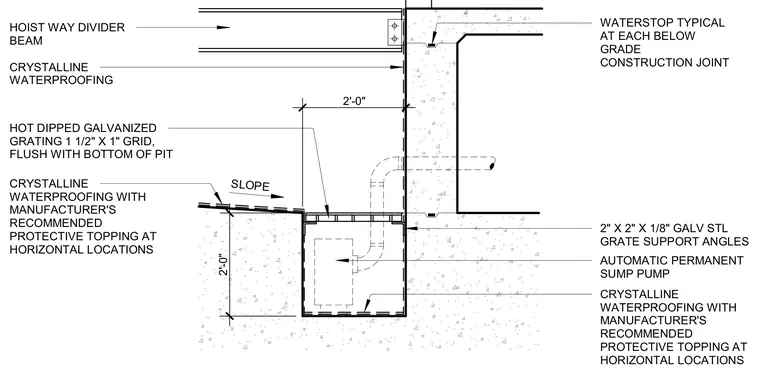

An automatic permanent sump pump sits inside a two-foot deep concrete pit finished with crystalline waterproofing and a manufacturer-recommended protective topping at horizontal locations. Hot-dipped galvanized steel grating with a one-and-a-half by one-inch grid rests flush with the bottom of the pit on two-by-two-by-one-eighth-inch galvanized steel support angles. A hoist way divider beam connects to the adjacent concrete wall, which features a waterstop at each below-grade construction joint.
2'-0" 2'-0" SLOPE AUTOMATIC PERMANENT SUMP PUMP 2" X 2" X 1/8" GALV STL GRATE SUPPORT ANGLES CRYSTALLINE WATERPROOFING HOT DIPPED GALVANIZED GRATING 1 1/2" X 1" GRID, FLUSH WITH BOTTOM OF PIT HOIST WAY DIVIDER BEAM WATERSTOP TYPICAL AT EACH BELOW GRADE CONSTRUCTION JOINT CRYSTALLINE WATERPROOFING WITH MANUFACTURER'S RECOMMENDED PROTECTIVE TOPPING AT HORIZONTAL LOCATIONS CRYSTALLINE WATERPROOFING WITH MANUFACTURER'S RECOMMENDED PROTECTIVE TOPPING AT HORIZONTAL LOCATIONS
