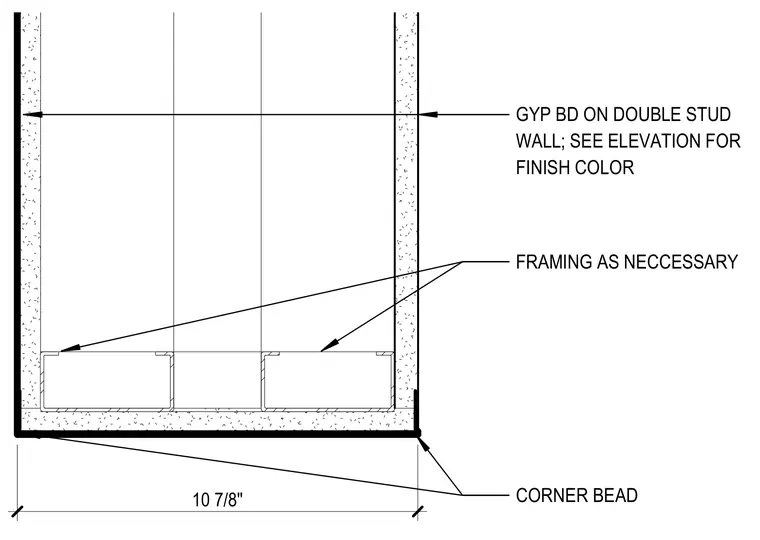

A double steel stud framing configuration carries gypsum board panels on both sides to form a thick partition wall. Additional internal framing is installed as necessary for structural support and rigidity. A metal corner bead is fastened to the outside edge to protect the drywall corner and provide a clean edge for finishing. Finish colors are coordinated per interior elevations.
GYP BD ON DOUBLE STUD WALL; SEE ELEVATION FOR FINISH COLOR FRAMING AS NECCESSARY 1 0 7 / 8 " CORNER BEAD
