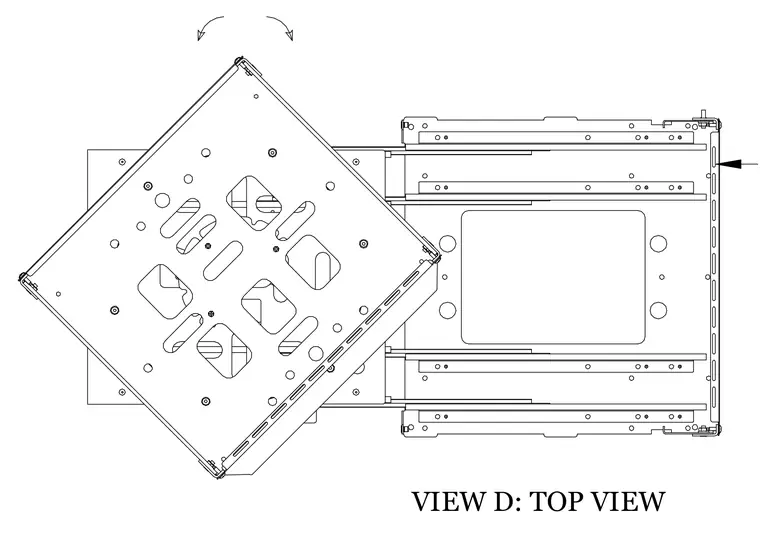

A pull-out equipment rack is mounted inside casework using heavy-duty sliding rail tracks secured to a base plate. The pivoting equipment frame attaches to the slide mechanism allowing rotation and extension for access. Fasteners secure the assembly components at pre-drilled mounting holes along the rails and frame flanges.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
