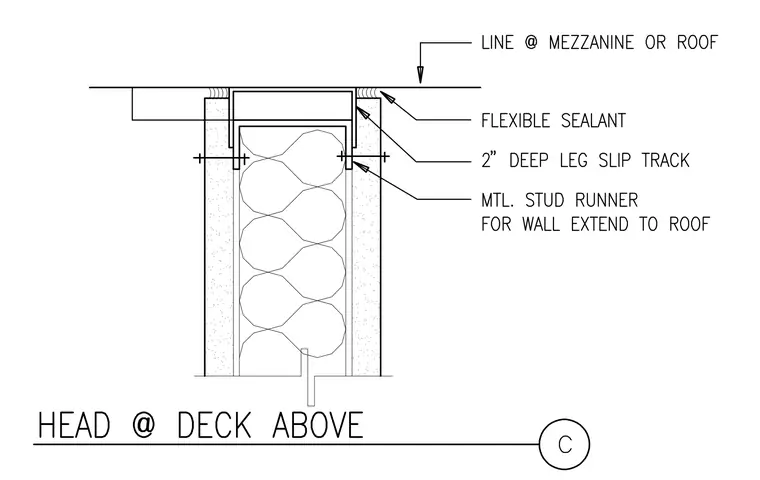

A metal stud runner extends to the roof or mezzanine deck, fitted inside a two-inch deep leg slip track that allows for vertical deflection. Flexible sealant seals the joint between the track and the deck above. Mechanical fasteners secure the metal stud framing to the slip track legs through slotted or standard connections.
