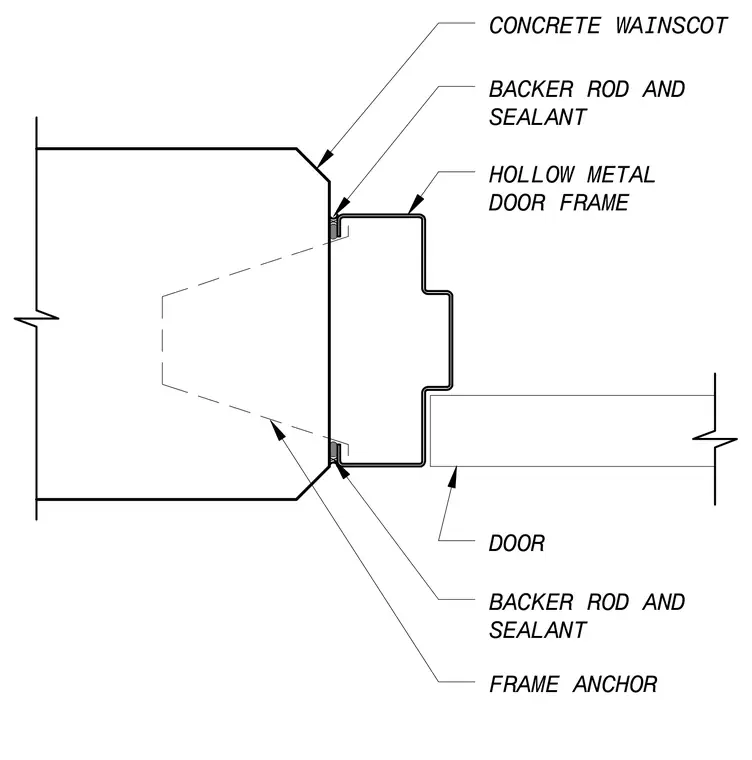

A hollow metal door frame connects to a concrete wainscot using a concealed frame anchor embedded within the concrete. The junction between the metal frame and the concrete is sealed on both sides with backer rod and sealant. The door swings within the frame opening.
HOLLOW METAL DOOR FRAME FRAME ANCHOR BACKER ROD AND SEALANT CONCRETE WAINSCOT BACKER ROD AND SEALANT DOOR
