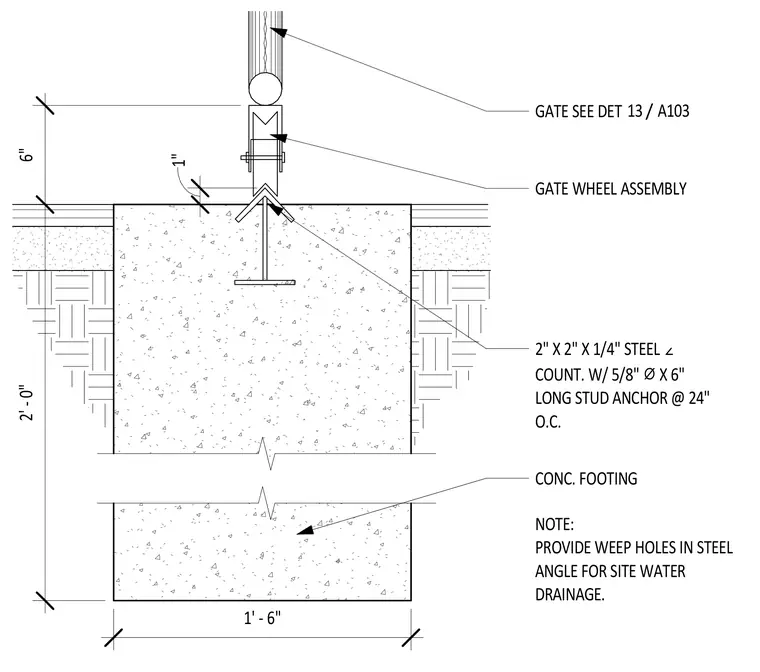

A sliding gate track assembly is supported by a continuous 2-inch by 2-inch by 1/4-inch steel angle embedded in a concrete footing. The steel angle is secured with 5/8-inch diameter by 6-inch long stud anchors spaced at 24 inches on center. The gate wheel assembly travels along the inverted steel angle track. Weep holes are provided in the steel angle to allow for site water drainage.
2' - 0" 6" 1" GATE SEE DET GATE WHEEL ASSEMBLY 2" X 2" X 1/4" STEEL ∠ COUNT. W/ 5/8" ⌀ X 6" LONG STUD ANCHOR @ 24" O.C. CONC. FOOTING NOTE: PROVIDE WEEP HOLES IN STEEL ANGLE FOR SITE WATER DRAINAGE. / 13 A103 1' - 6"
