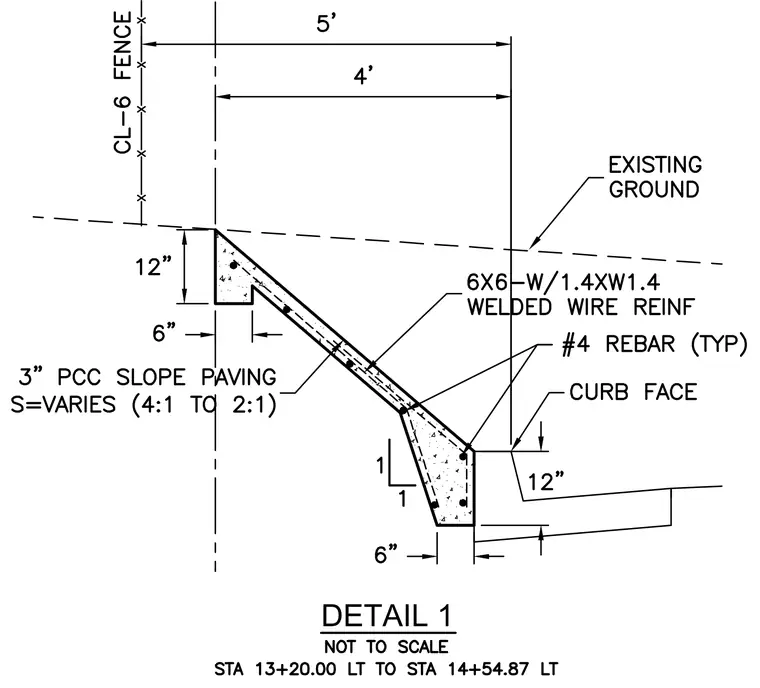

A three-inch Portland cement concrete slope paving with a variable slope from four to one to two to one rests against existing ground. The slab is reinforced with six by six W slash one point four by W one point four welded wire reinforcement and typical number four rebar at the thickened edges. The top edge features a twelve-inch vertical drop anchored into the ground, while the lower edge transitions into a twelve-inch curb face adjacent to an existing grade. A six-foot chain link fence sits five feet back from the top of the slope paving.
