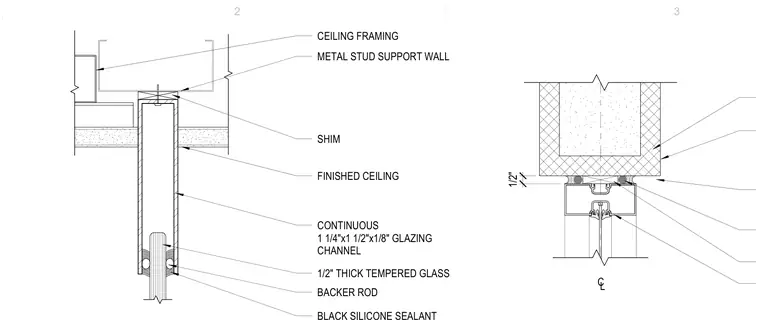

An interior glass partition head assembly anchored to metal stud ceiling framing with a continuous glazing channel and sealant. The top of the assembly connects to ceiling framing and a metal stud support wall with a shim for leveling. A continuous 1 1/4" by 1 1/2" by 1/8" glazing channel receives a 1/2" thick tempered glass panel. The glass joint is sealed with backer rod and black silicone sealant on both sides below the finished ceiling level.
CEILING FRAMING METAL STUD SUPPORT WALL SHIM CONTINUOUS 1 1/4"x1 1/2"x1/8" GLAZING CHANNEL BACKER ROD BLACK SILICONE SEALANT FINISHED CEILING 1/2" THICK TEMPERED GLASS CL 1/2" 2 3
