An upper cabinet assembly is mounted to the wall with a gypsum board soffit and plastic laminate enclosure above where applicable. The cabinet features one-quarter inch tempered glass sliding doors operating on a recessed track at the bottom. Interior surfaces are fully lined with melamine, and recessed metal standards support three-quarter inch particle board adjustable shelving.

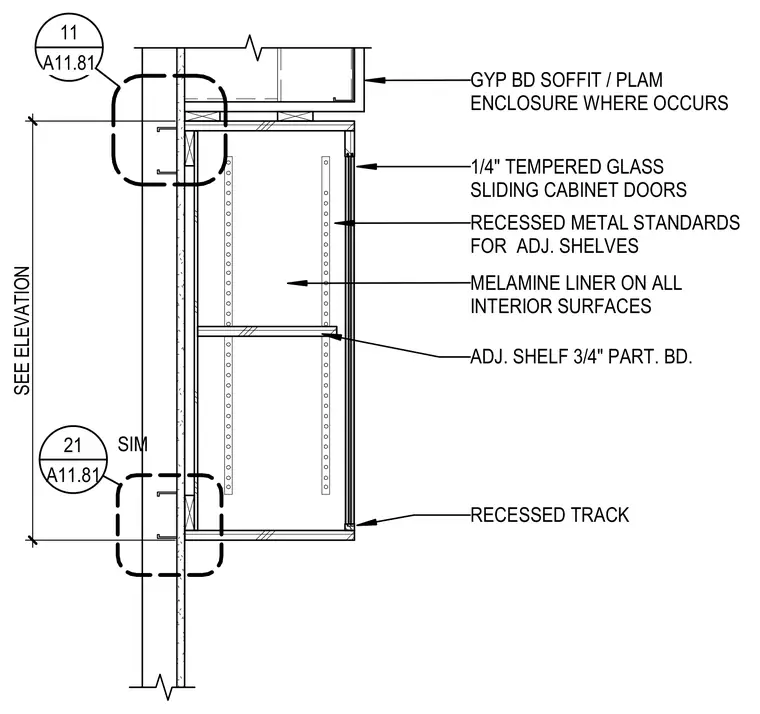

A11.81 21 SIM A11.81 11 MELAMINE LINER ON ALL INTERIOR SURFACES ADJ. SHELF 3/4" PART. BD. RECESSED METAL STANDARDS FOR ADJ. SHELVES 1/4" TEMPERED GLASS SLIDING CABINET DOORS GYP BD SOFFIT / PLAM ENCLOSURE WHERE OCCURS SEE ELEVATION RECESSED TRACK
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
