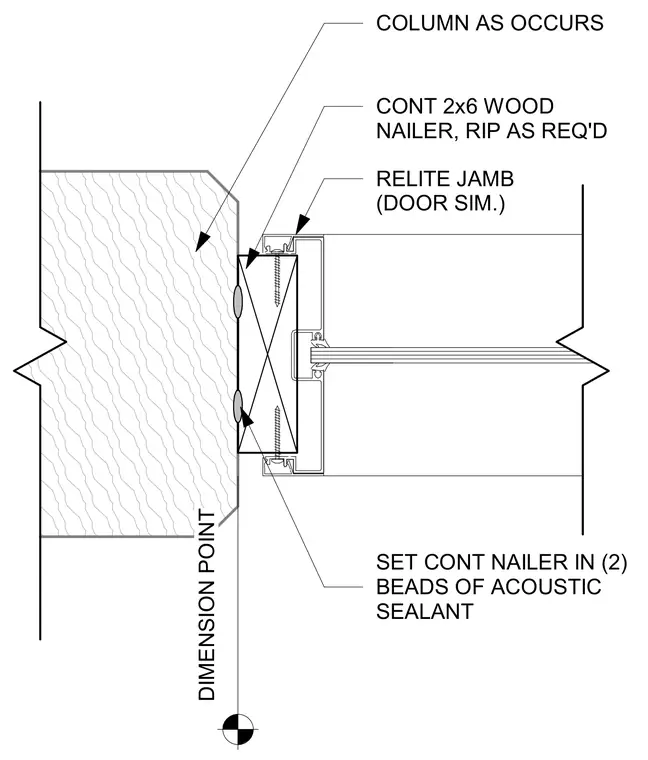

A continuous 2x6 wood nailer is ripped as required and set in two beads of acoustic sealant against the structural column as occurs. The relite jamb, similar to a door frame, fastens directly into the wood nailer. A dimension point aligns with the exterior face of the assembly.
RELITE JAMB (DOOR SIM.) COLUMN AS OCCURS CONT 2x6 WOOD NAILER, RIP AS REQ'D DIMENSION POINT SET CONT NAILER IN (2) BEADS OF ACOUSTIC SEALANT
