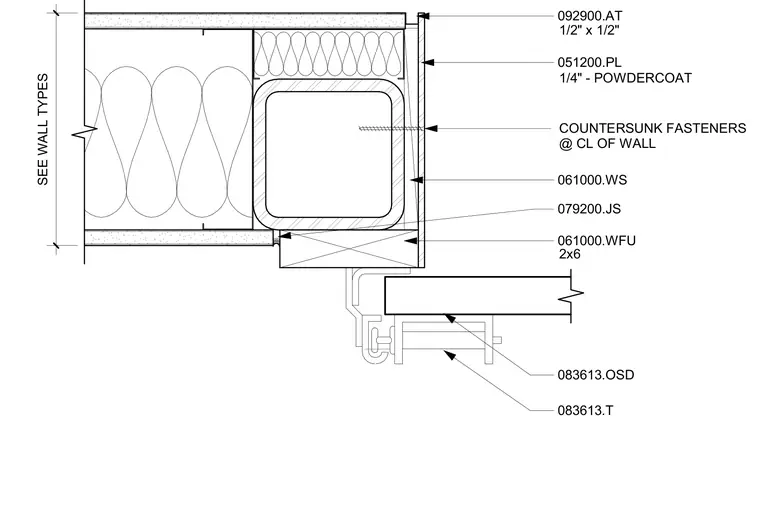

An overhead sectional door track and assembly abuts a framed wall conditioned with wood framing and insulation. A one-quarter inch thick powder-coated steel plate is fastened along the centerline of the wall using countersunk fasteners. Joint sealant is applied at the interface between the wood framing infill and the adjacent construction. Gypsum board trims the interior side of the wall assembly.
083613.T 083613.OSD 061000.WFU 2x6 SEE WALL TYPES 061000.WS 051200.PL 092900.AT 1/2" x 1/2" 1/4" - POWDERCOAT COUNTERSUNK FASTENERS @ CL OF WALL 079200.JS
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
