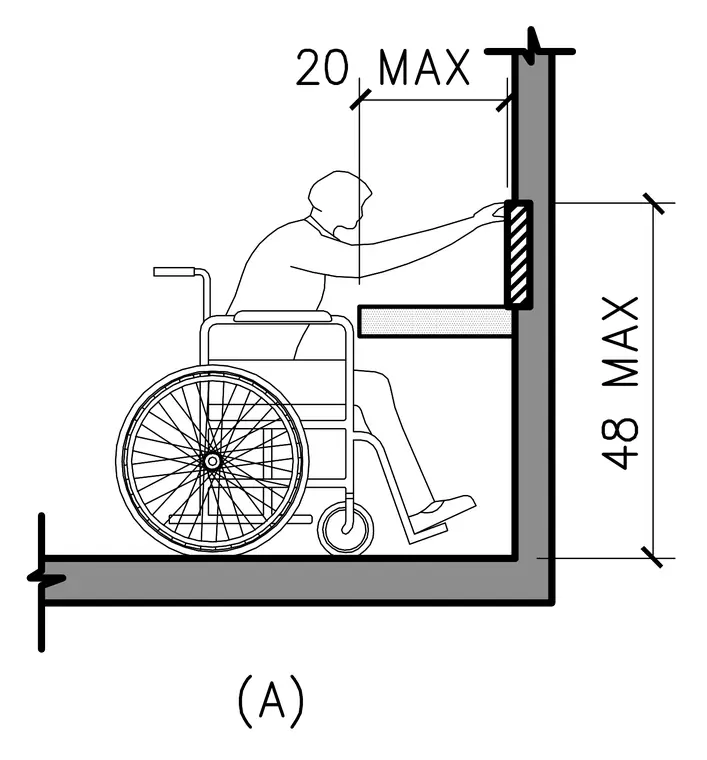

A forward reach profile for a wheelchair user over an obstruction shows maximum reach limits relative to the finished floor and wall. The maximum reach height to the operable part is 48 inches above the floor. The maximum forward reach depth over the counter obstruction is 20 inches. A person seated in a wheelchair faces a wall-mounted element above a horizontal work surface.
