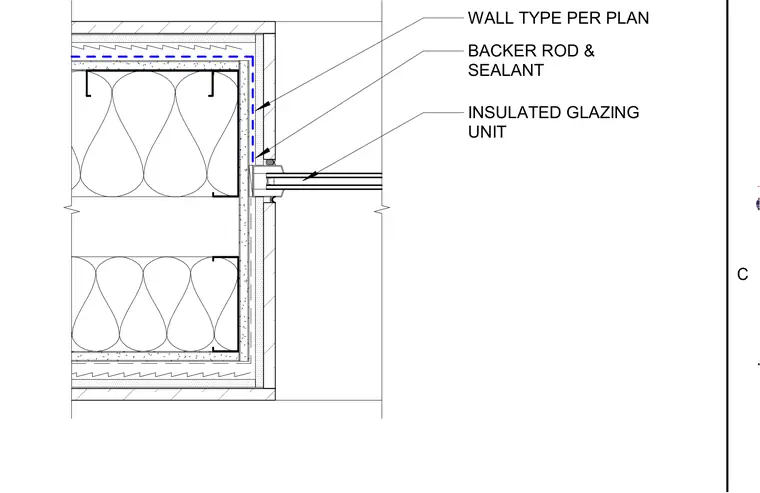

An interior aluminum window jamb is detailed with an insulated glazing unit installed within an exterior wall assembly sized per plan. A backer rod and sealant joint seals the perimeter between the window frame and the adjacent wall type. Steel framing studs with batt insulation form the surrounding wall cavity.
