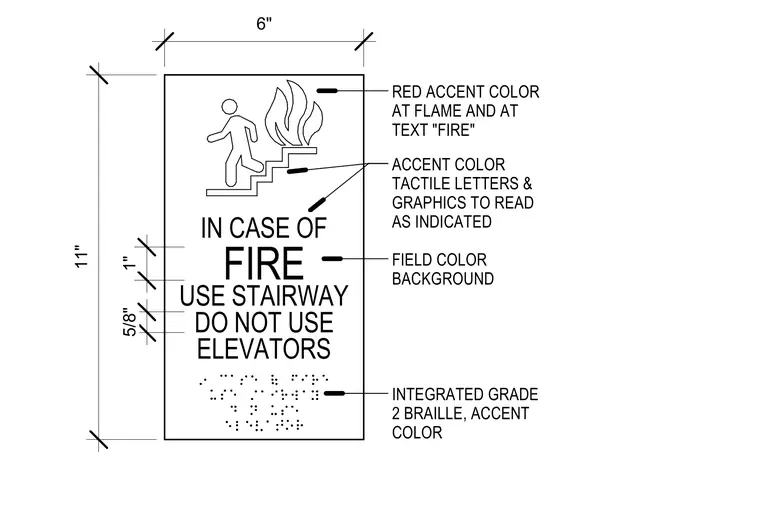

An eleven inch high by six inch wide fire evacuation sign incorporates tactile letters and graphics with an accent color applied to the flame icon and the text "FIRE". The background utilizes a field color, and integrated grade 2 braille is positioned at the lower portion of the signage in an accent color. Additional accent color is applied to tactile letters and graphics as indicated. Overall dimensions are six inches wide by eleven inches high with specific spacing for text layouts.
FIRE 11" 6" FIELD COLOR BACKGROUND ACCENT COLOR TACTILE LETTERS & GRAPHICS TO READ AS INDICATED INTEGRATED GRADE 2 BRAILLE, ACCENT COLOR IN CASE OF USE STAIRWAY DO NOT USE ELEVATORS RED ACCENT COLOR AT FLAME AND AT TEXT "FIRE" 5/8" 1"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
