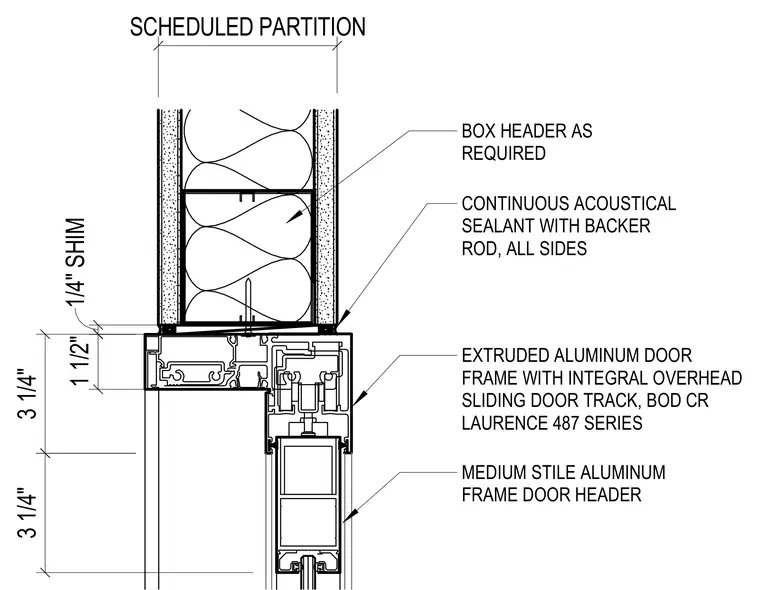

An extruded aluminum door frame with an integral overhead sliding door track for a CR Laurence 487 series medium stile aluminum frame door header sits beneath a scheduled partition wall. A box header is provided as required within the partition framing above a one-and-a-half-inch space. A one-quarter-inch shim is placed between the partition and the frame head. Continuous acoustical sealant with a backer rod is applied to all sides at the partition and frame junction.
BOX HEADER AS REQUIRED SCHEDULED PARTITION 1 1/2" 1/4" SHIM CONTINUOUS ACOUSTICAL SEALANT WITH BACKER ROD, ALL SIDES 3 1/4" 3 1/4" EXTRUDED ALUMINUM DOOR FRAME WITH INTEGRAL OVERHEAD SLIDING DOOR TRACK, BOD CR LAURENCE 487 SERIES MEDIUM STILE ALUMINUM FRAME DOOR HEADER
