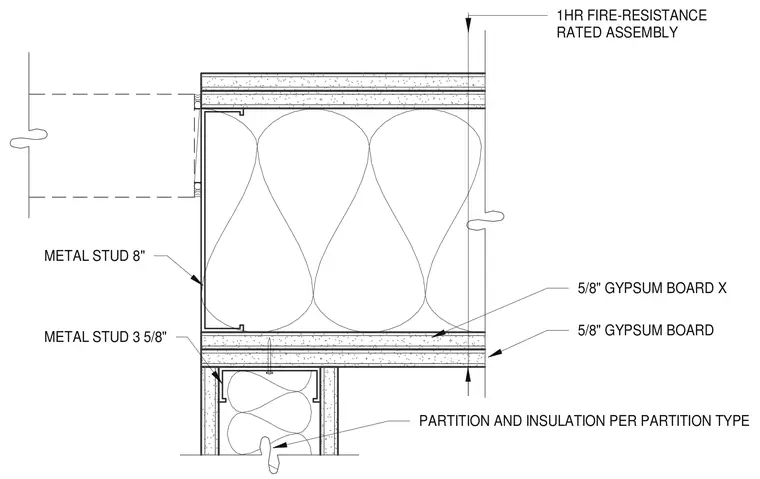

An 8-inch cold-formed metal stud wall terminates at a junction with a perpendicular 3-5/8-inch metal stud partition. The assembly is finished with layers of 5/8-inch Type X gypsum board and standard 5/8-inch gypsum board to satisfy a 1-hour fire-resistance rated assembly requirement. Batt insulation fills the stud cavities per partition specifications. The framing components are tied together at the panel end to form the furring joint.
METAL STUD 8" 5/8" GYPSUM BOARD X PARTITION AND INSULATION PER PARTITION TYPE 5/8" GYPSUM BOARD 1HR FIRE-RESISTANCE RATED ASSEMBLY METAL STUD 3 5/8"
