Architectural · A-EZ52R

Window Transom Jamb at Stucco and Wood Siding Wall

Materials

Concrete Steel Cold-formed Steel Stainless Steel Timber / Wood Glass / Glazing Aluminum Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Doors Windows Insulation Site / Paving Roof / Floor Openings

About this detail

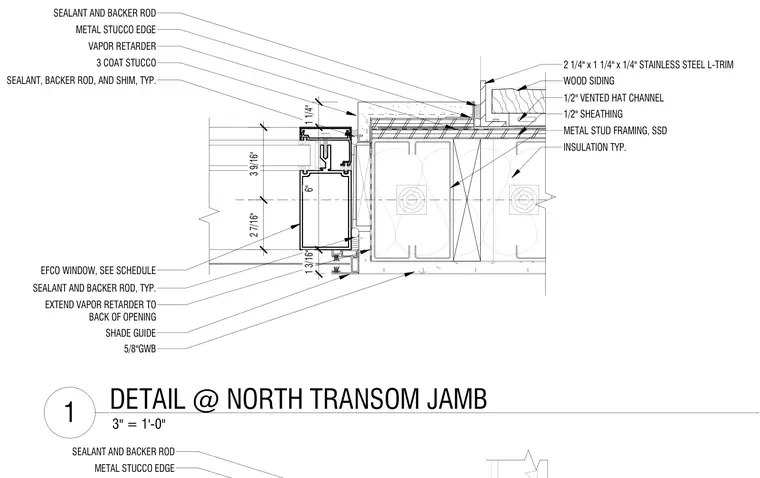

A plan detail of a window transom jamb assembly transitions between a commercial window frame and an exterior wall. The wall construction features cold-formed metal stud framing with insulation and exterior sheathing, finished with a three-coat stucco system on one side and wood siding over vented hat channels on the other. A vapor retarder is installed behind the exterior finishes and extended to the back of the rough opening. The window frame is sealed with typical sealant and backer rod joints, utilizing shims and a stainless steel L-trim. Interior finishes consist of five-eighths inch gypsum wallboard and a shade guide at the head of the opening.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.

Start membership
