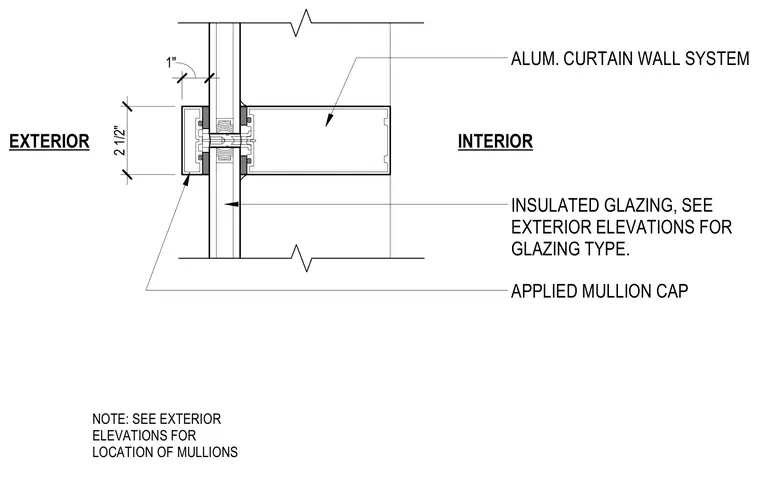

An aluminum curtain wall system integrates insulated glazing units with an interior horizontal framing member and an exterior applied mullion cap measuring two and one-half inches in depth. Glazing thickness and types are referenced per exterior elevations, and mullion locations are coordinated accordingly.
ALUM. CURTAIN WALL SYSTEM INTERIOR EXTERIOR APPLIED MULLION CAP INSULATED GLAZING, SEE EXTERIOR ELEVATIONS FOR GLAZING TYPE. NOTE: SEE EXTERIOR ELEVATIONS FOR LOCATION OF MULLIONS 1" 2 1/2"
