Fiber Cement Panel to Stucco Transition

Materials

Cold-formed Steel Timber / Wood Metal (misc.)EIFS / Plaster / Stucco

Elements

About this detail

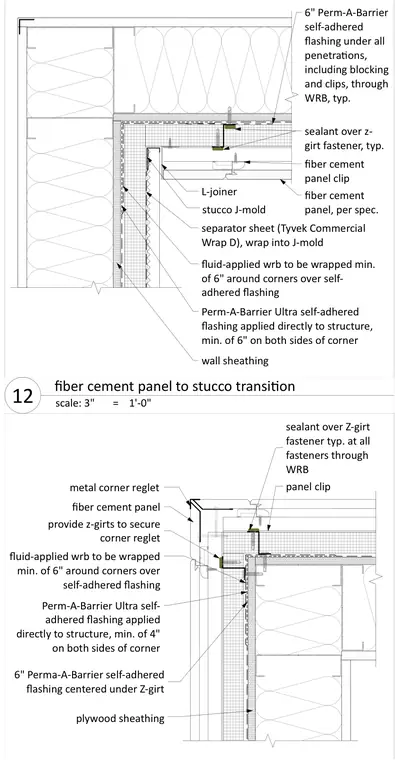

Exterior wall transition between fiber cement panel cladding and a stucco finish over plywood wall sheathing and cold-formed steel framing. The structural substrate is protected by a fluid-applied water-resistive barrier wrapped around the corner over a self-adhered flashing membrane. Z-girts secure the metal corner reglet and panel clips, with sealant applied over all fasteners penetrating the water-resistive barrier. A stucco J-mold receives a separator sheet wrapped into the joint alongside an L-joiner to create a clean junction between the two exterior finishes.
