Theater Parterre Railing and Sound Wall Detail

Materials

Concrete Steel Timber / Wood Masonry / CMU

Elements

Railings / Guards Floors / Slabs Millwork / Casework Anchors / Embeds Connections / Plates

Connections

Embed Plate

About this detail

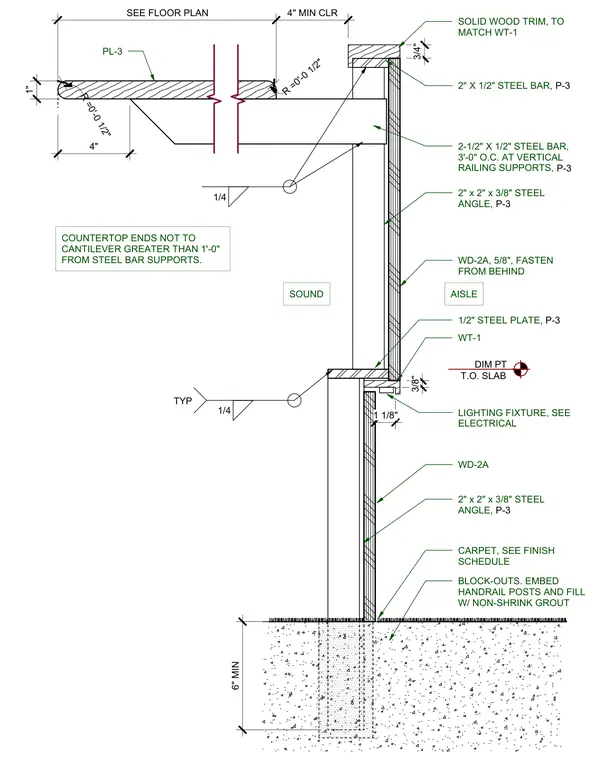

A theater parterre railing and sound wall assembly mounts over a concrete slab using steel framing composed of 2-inch by 2-inch by 3/8-inch steel angles, 2-1/2-inch by 1/2-inch steel bar supports spaced 3 feet on center at vertical railing locations, and a 2-inch by 1/2-inch steel bar supporting a solid wood countertop designated PL-3 with rounded edges. Wood paneling designated WD-2A fastens from behind, featuring solid wood trim matching WT-1 at the top edge. A 1/2-inch steel plate and angle assembly accommodates a concealed lighting fixture below. At the base, handrail posts embed into 6-inch minimum block-outs in the concrete slab and fill with non-shrink grout, with carpet flooring specified per the finish schedule.
