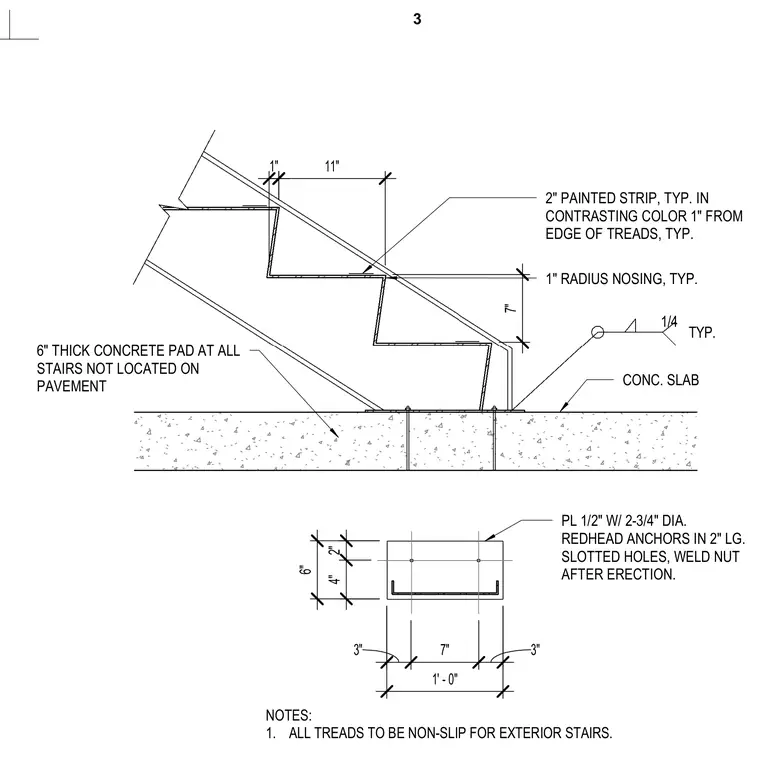

A metal stair assembly ties into a six-inch thick concrete slab at the base using a half-inch thick steel plate secured with two three-quarter-inch diameter Redhead anchors in two-inch long slotted holes, with the nut welded after erection. The connection incorporates a quarter-inch typical fillet weld. Treads feature a one-inch radius nosing and a two-inch wide painted strip in a contrasting color set one inch back from the edge. Exterior stairs not located on pavement sit on a six-inch thick concrete pad, and all exterior treads are finished with a non-slip surface.
1/4 TYP. PL 1/2" W/ 2-3/4" DIA. REDHEAD ANCHORS IN 2" LG. SLOTTED HOLES, WELD NUT AFTER ERECTION. CONC. SLAB NOTES: 1. ALL TREADS TO BE NON-SLIP FOR EXTERIOR STAIRS. 6" THICK CONCRETE PAD AT ALL STAIRS NOT LOCATED ON PAVEMENT 2" PAINTED STRIP, TYP. IN CONTRASTING COLOR 1" FROM EDGE OF TREADS, TYP. 1" RADIUS NOSING, TYP. 7" 1" 11" 3" 7" 3" 2" 4" 6" 1' - 0" 3
