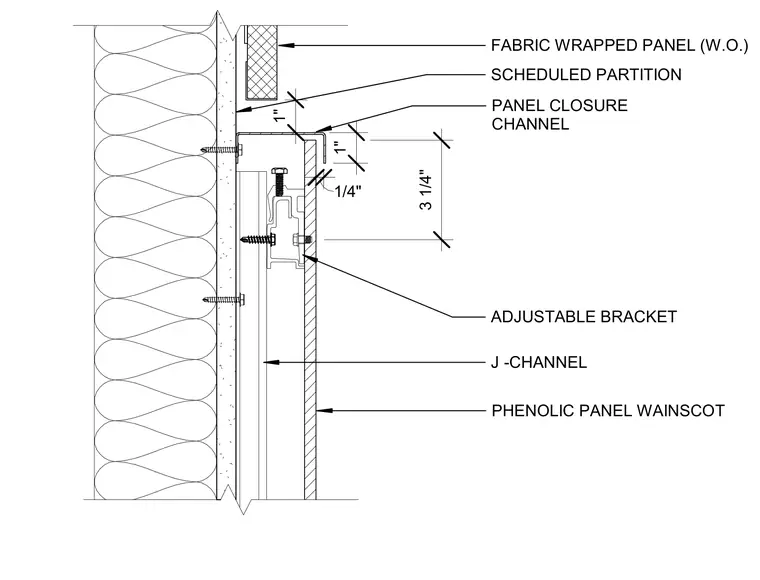

The phenolic panel wainscot mounts to a scheduled partition using an adjustable bracket and J-channel. A panel closure channel caps the top of the wainscot with a one-inch vertical leg, transitioning to a fabric-wrapped panel above. Fasteners secure the adjustable bracket and J-channel back to the partition framing.
3 1/4" SCHEDULED PARTITION PHENOLIC PANEL WAINSCOT J -CHANNEL ADJUSTABLE BRACKET PANEL CLOSURE CHANNEL 1/4" 1" 1" FABRIC WRAPPED PANEL (W.O.)
